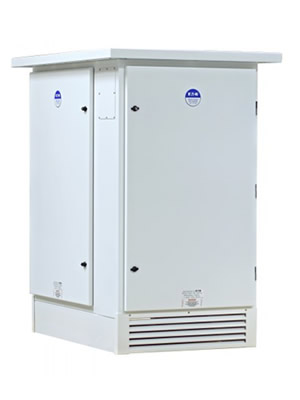

Substations
An essential component to the design of the modern marina, the substation safely and efficiently distributes power throughout the marina. Eaton Marina Power and Lighting's substations feature distribution equipment in a locking, stainless steel enclosure. Through proper utilization of electrical distribution equipment, the marina designer is able to reduce the overall electrical infrastructure costs while increasing efficiency.
Dimensions
Standard substation - single panel |
in. |
mm. |
Height |
62.8 |
1595.12 |
Width |
50.76 |
1289.30 |
Depth |
36 |
914.40 |
Standard substation - Dual Panel |
in. |
mm. |
Height |
62.8 |
1595.12 |
Width |
62.76 |
1594.10 |
Depth |
36 |
914.40 |
Ventilation
The substation ventilation is designed to optimize air circulation over and around the transformers and through the panel compartment so that the substation operates at lower temperatures. Substations come equipped with temperature controlled cooling fans for exhausting hot air from the cabinet and solar shield.
Standard Features
- Temperature Controlled Cooling Fans for Exhausting Hot Air from the Cabinet
- Solar Shield
Available Options
- Heavy 316L Stainless Steel Housing that is Powder-Coated with a Polyester Resin
- Single-Phase and Three-Phase Models
- Copper-Wound, Low-Noise Transformer that is Double Insulated and Epoxy Over-Coated
- Up to 1200 Amp Main Circuit Breaker
- Ground Fault Monitoring System
- Surge Protection Device to Protect Critical Electrical and Electronic Equipment from Damage by Power Surges
Panel and Transformer Combinations
Single Phase |
Three Phase |
Panel |
Transformer |
Panel |
Transformer |
200A |
50 KVA |
100A |
45 KVA |
300A |
75 KVA |
200A |
75 KVA |
400A |
100 KVA |
300A |
112.5 KVA |
600A |
150 KVA |
400A |
150 KVA |
700A |
167.5 KVA |
600A |
225 KVA |
800A |
200 KVA |
800A |
300 KVA |
1000A |
250 KVA |
|
|
1200A |
330 KVA |
|
|
